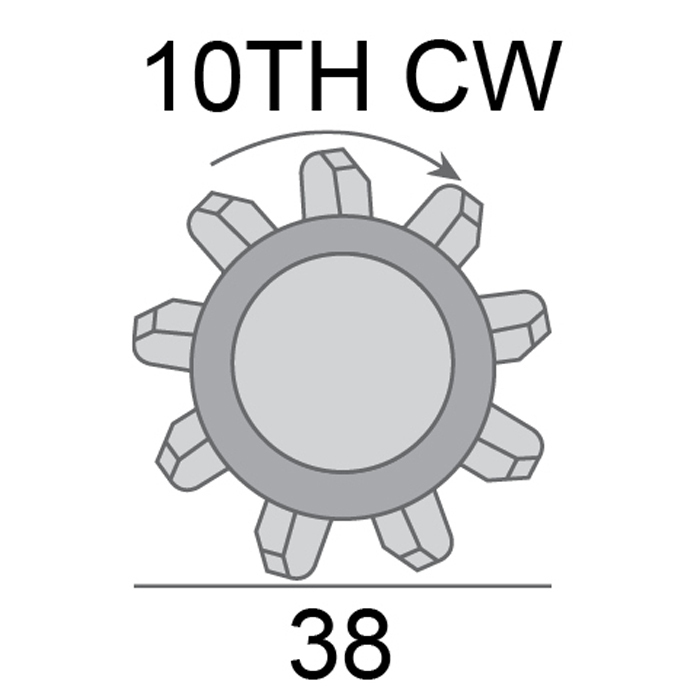

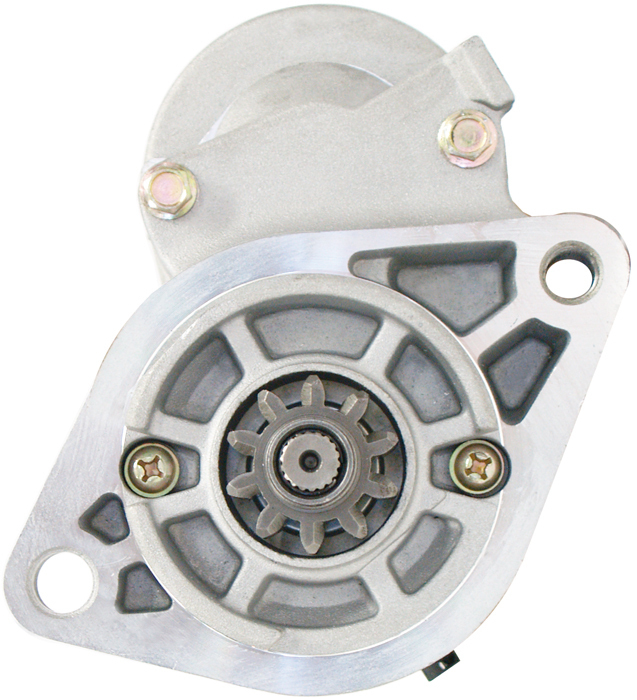

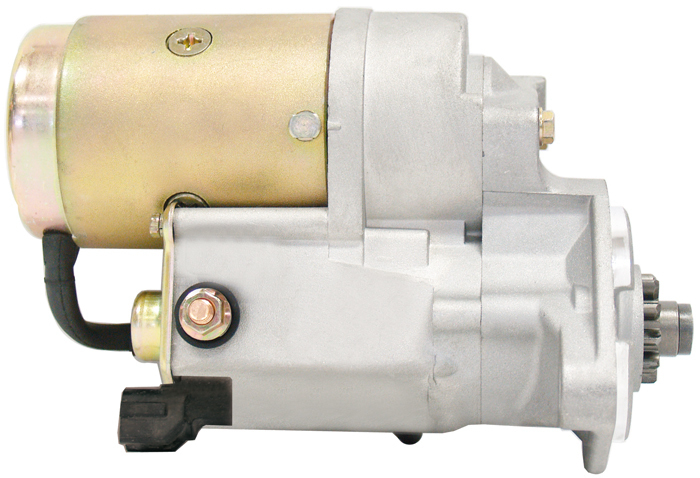

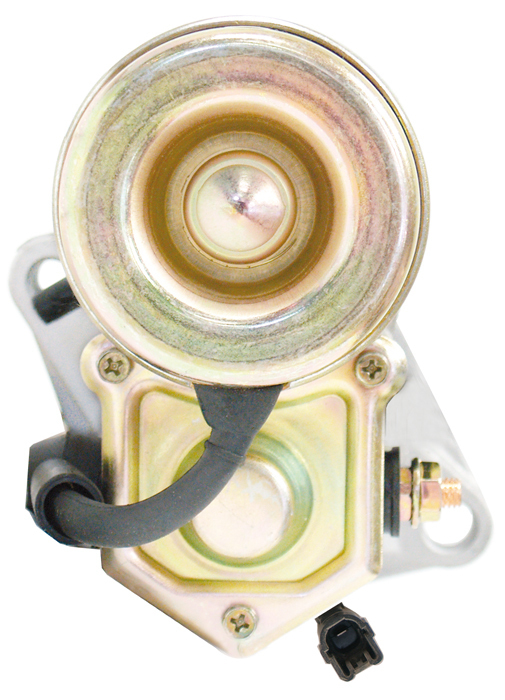

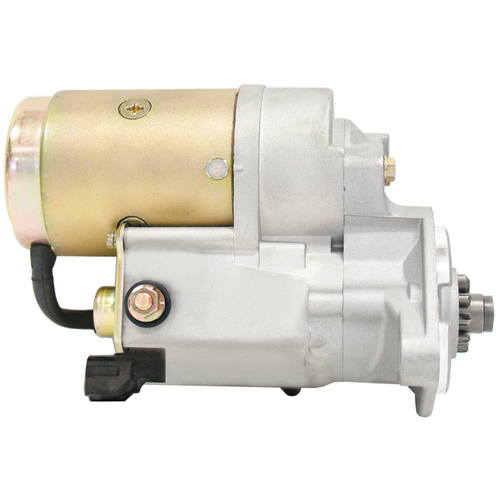

Denso Starter Motor 12V 2.2KW 10TH CW
Applications: Toyota HiAce, Hilux, Prado Diesel
Engine: 1KD-FTV, 1KZTE

Overall Length Mounting Hole Dia Mt Holes Cnt to Cnt Flange Dia Nose Cone Length Pinion at Rest Field Hsg. Dia Teeth Dia
240 M12x1.5/13 127 82 31 18 85 38



MAKE MODEL SUB MODEL YEAR ENGINE LITRES FUEL
TOYOTA  HIACE KDH200R, KDH220R TURBO 2005-06 2KDFTV 2.5 DIESEL
TOYOTA  HIACE KDH222R COMUTER BUS TURBO 2005-06 2KDFTV 2.5 DIESEL
TOYOTA  HIACE KDH223R COMUTER BUS TURBO 2006-14 1KDFTV 3.0 DIESEL
TOYOTA  HIACE KDH201R, KHD221R TURBO 2006-14 1KDFTV 3.0 DIESEL
TOYOTA  HILUX YN130R, YN185R 1993-00 1KZTE 3.0 DIESEL
TOYOTA  HILUX KZN165R 1999-05 1KZTE 3.0 DIESEL
TOYOTA  HILUX KUN16R, KUN26R 2005-14 1KDFTV 3.0 DIESEL
TOYOTA  HILUX KUN16R, KUN26R (HIGH OUTPUT UNIT) 2005-14 1KDFTV 3.0 DIESEL
TOYOTA  LANDCRUISER  PRADO  KZJ95R 1996-03 1KZTE 3.0 DIESEL
TOYOTA  LANDCRUISER  PRADO  KZJ120R  2003-07 1KZTE 3.0 DIESEL
TOYOTA  LANDCRUISER  PRADO  KDJ120R  2006-09 1KDFTV 3.0 DIESEL
TOYOTA  LANDCRUISER  PRADO  KDJ150R , KDJ155R 2009-14 1KDFTV 3.0 DIESEL

WARRANTY

All Alternators and Starter Motors supplied by Car Parts Express are warranted to be free of defects in materials and workmanship for the following periods (see table).

The warranty period commences from the date of purchase.



PASSENGER VEHICLE (PMV): 36 Months / 40,000km

COMMERCIAL AND RECREATIONAL VEHICLE (CV): PMV 24 Months / 40,000km


PMV - Refers to Passenger Motor Vehicles Only

CV - Refers to Light Commercial and Heavy Commercial Diesel applications

Conditions

All claims for warranty must be made within the relevant warranty period, by returning the products to Car Parts Express at the purchases expense. With completed warranty claim form or proof of purchase.

The warranty does not apply to failure or damage to the unit caused by incorrect or faulty fittment, contamination by foreign materials or modification carried out by anyone other than Car Parts Express.

Car Parts Express pursuant to this warranty shall be limited to Car Parts Express in it's discretion by either repairing or replacing the defective unit or providing a credit or refund of it's original invoice price. In no case shall this include any consequential or other costs of removal and refitting any unit.

SKU 23191025009
Shipping Weight 5.0000kg
