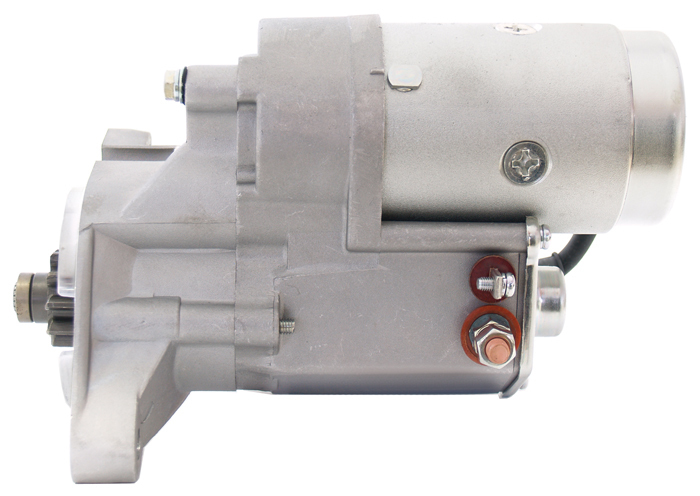

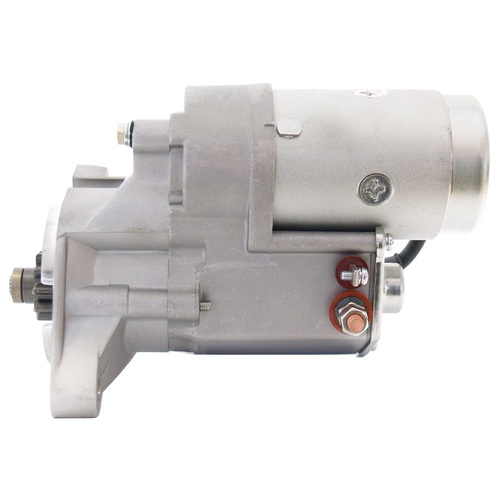

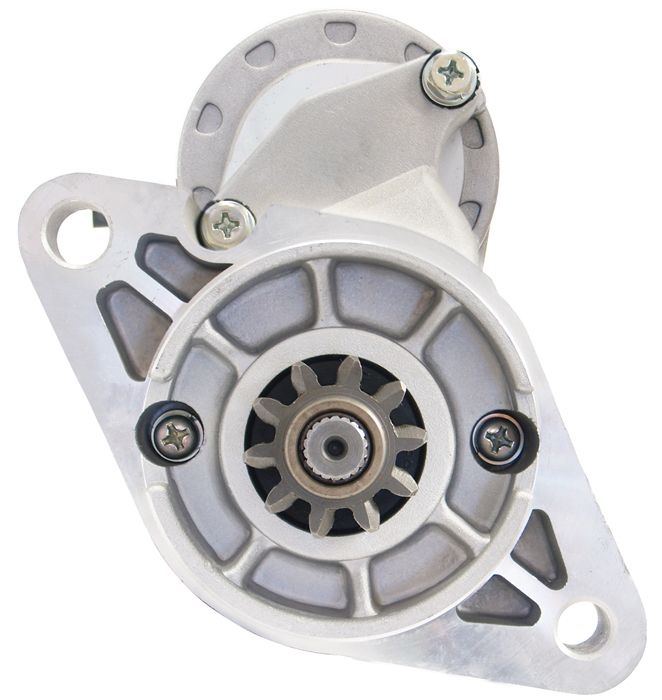

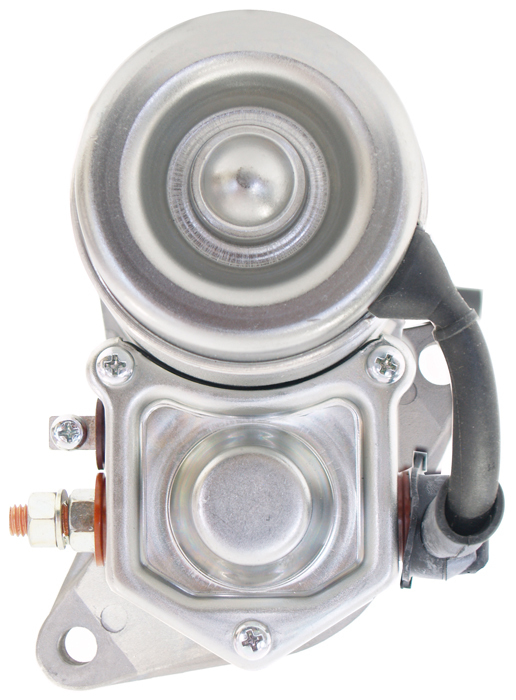

Denso Genuine Quality Starter Motor 12V 2.0KW 10TH CW
Applications: Toyota Hilux, 4 Runner
Engine: 3L, 5L Diesel * 10th Unit will Replace Early 11th Unit

Overall Length Mounting Hole Dia Mt Holes Cnt to Cnt Flange Dia Nose Cone Length Pinion at Rest Field Hsg. Dia Teeth Dia
220 13/M12x1.5 135 82 30 15 75 37



VEHICLE APPLICATIONS
MAKE MODEL SUB MODEL STT TRANSMISSION YEAR ENGINE LITRES FUEL
TOYOTA DYNA LY60 150     1985-88 2L 2.4 DIESEL
TOYOTA DYNA LH80 100     1985-91 2L 2.4 DIESEL
TOYOTA DYNA LY61 150     1988-95 3L 2.8 DIESEL
TOYOTA DYNA LY211 150     1995-01 3L 2.8 DIESEL
TOYOTA DYNA LY220 100     2001-05 5L 3.0 DIESEL
TOYOTA DYNA LY230 150     2001-05 5L 3.0 DIESEL
TOYOTA HIACE LH20, LH30, LH50, LH60, LH70     1980-87 L 2.2 DIESEL
TOYOTA HIACE LH51,LH61, LH66 LH71, LH80, LH85     1985-95 2L 2.4 DIESEL
TOYOTA HIACE LH103, LH113, LH125     1989-01 3L 2.8 DIESEL
TOYOTA HIACE LH103, LH113, LH125(AIR CON CHANGES)     1989-01 3L 2.8 DIESEL
TOYOTA HIACE LH162, LH172, LH184     2000-05 5L 3.0 DIESEL
TOYOTA HILUX LN40R, LN46R, LN55R     1980-88 L 2.2 DIESEL
TOYOTA HILUX LN56R, LN60, LN61, LN65     1983-89 2L 2.4 DIESEL
TOYOTA HILUX LN80, LN85R     1988-94 2L 2.4 DIESEL
TOYOTA HILUX SURF(IMPORT)WIDE PULLEY     1988-91 2L 2.4 DIESEL
TOYOTA HILUX SURF(IMPORT)(Alternator PUMP FRONT OF UNIT)     1990-93 2LTE 2.4 DIESEL
TOYOTA HILUX LN106R, LN111R     1991-93 3L 2.8 DIESEL
TOYOTA HILUX LN106R, LN111R(ALT PUMP ON FRONT)     1993-97 3L 2.8 DIESEL
TOYOTA HILUX LN86R, LN107R     1991-93 3L 2.8 DIESEL
TOYOTA HILUX LN130(ALT PUMP ON FRONT)     1992-96 3l 2.8 DIESEL
TOYOTA HILUX LN86R, LN107R(ALT PUMP ON FRONT)     1993-97 3L 2.8 DIESEL
TOYOTA HILUX LN147R, LN167R, LN172R     1997-05 5L 3.0 DIESEL
TOYOTA 4 RUNNER LN60, LN61     1984-89 2L 2.4 DIESEL
TOYOTA 4 RUNNER LN 130R     1989-93 3L 2.8 DIESEL
TOYOTA 4 RUNNER (SURF) IMPORT     1989-93 3L 2.8 DIESEL



WARRANTY

All Alternators and Starter Motors supplied by Car Parts Express are warranted to be free of defects in materials and workmanship for the following periods (see table).

The warranty period commences from the date of purchase.



PASSENGER VEHICLE (PMV): 36 Months / 40,000km

COMMERCIAL AND RECREATIONAL VEHICLE (CV): PMV 24 Months / 40,000km


PMV - Refers to Passenger Motor Vehicles Only

CV - Refers to Light Commercial and Heavy Commercial Diesel applications

Conditions

All claims for warranty must be made within the relevant warranty period, by returning the products to Car Parts Express at the purchases expense. With completed warranty claim form or proof of purchase.

The warranty does not apply to failure or damage to the unit caused by incorrect or faulty fittment, contamination by foreign materials or modification carried out by anyone other than Car Parts Express.

Car Parts Express pursuant to this warranty shall be limited to Car Parts Express in it's discretion by either repairing or replacing the defective unit or providing a credit or refund of it's original invoice price. In no case shall this include any consequential or other costs of removal and refitting any unit.

SKU 231910017GQ
Shipping Weight 5.0000kg
