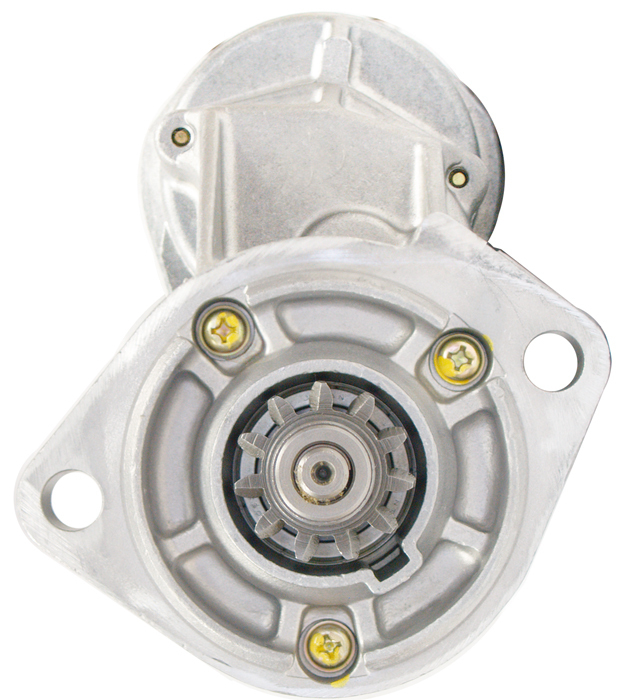

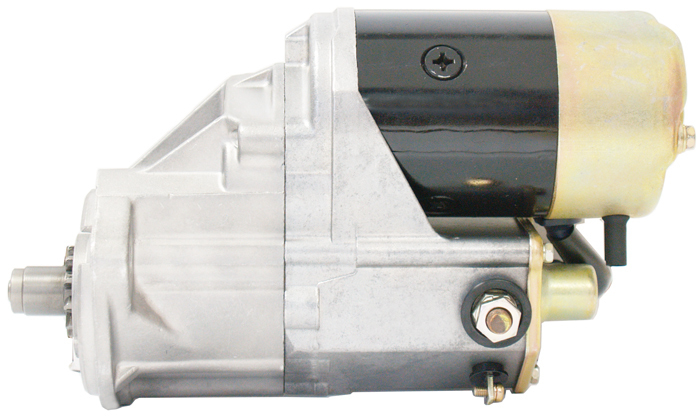

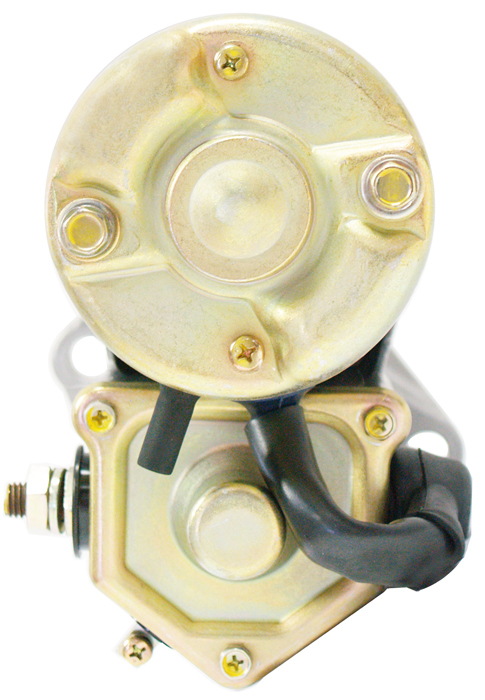

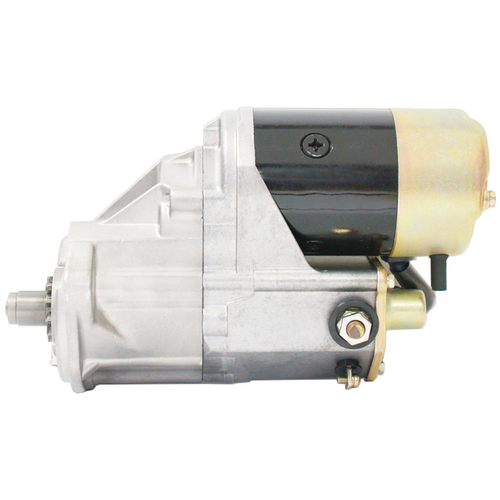

Denso Starter Motor 24V 4.5KW 10TH CW
Applications: Toyota FDT25, FD30, FD70, FD
Engine: B2J Diesel

Overall Length Mounting Hole Dia Mt Holes Cnt to Cnt Flange Dia Nose Cone Length Pinion at Rest Field Hsg. Dia Teeth Dia
298 13 116 90 38 16 90



MAKE MODEL SUB MODEL YEAR ENGINE LITRES FUEL
TOYOTA  FORKLIFTS 2FD SERIES 1984-93 2J 3.0 DIESEL
TOYOTA  FORKLIFTS 3FD SERIES 1976-88 2J 3.0 DIESEL
TOYOTA  FORKLIFTS 5FD SERIES 1989-94 1DZ 3.0 DIESEL
TOYOTA  FORKLIFTS 4FD, 5FD SERIES 1986-89 2J 3.0 DIESEL
TOYOTA  FORKLIFTS 5FD SERIES 1989-94 1Z 3.0 DIESEL
TOYOTA  FORKLIFTS 6FD SERIES   1DZ 3.0 DIESEL
TOYOTA  FORKLIFTS 6FD SERIES   2J 3.0 DIESEL
TOYOTA  FORKLIFTS FD, FDT SERIES 1980-88 2J 3.0 DIESEL
TOYOTA  FORKLIFTS FD., FDT SERIES 1980-ON B 3.0 DIESEL
TOYOTA  FORKLIFTS 6FD, FFD SERIES  1980-89 2DZ 3.0 DIESEL





WARRANTY

All Alternators and Starter Motors supplied by Car Parts Express are warranted to be free of defects in materials and workmanship for the following periods (see table).

The warranty period commences from the date of purchase.



PASSENGER VEHICLE (PMV): 36 Months / 40,000km

COMMERCIAL AND RECREATIONAL VEHICLE (CV): PMV 24 Months / 40,000km


PMV - Refers to Passenger Motor Vehicles Only

CV - Refers to Light Commercial and Heavy Commercial Diesel applications

Conditions

All claims for warranty must be made within the relevant warranty period, by returning the products to Car Parts Express at the purchases expense. With completed warranty claim form or proof of purchase.

The warranty does not apply to failure or damage to the unit caused by incorrect or faulty fittment, contamination by foreign materials or modification carried out by anyone other than Car Parts Express.

Car Parts Express pursuant to this warranty shall be limited to Car Parts Express in it's discretion by either repairing or replacing the defective unit or providing a credit or refund of it's original invoice price. In no case shall this include any consequential or other costs of removal and refitting any unit.

SKU 231910012
Shipping Weight 5.0000kg
